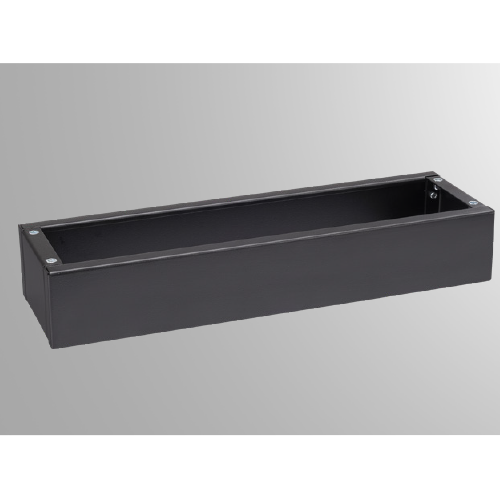

Plinth Set - HM BZ

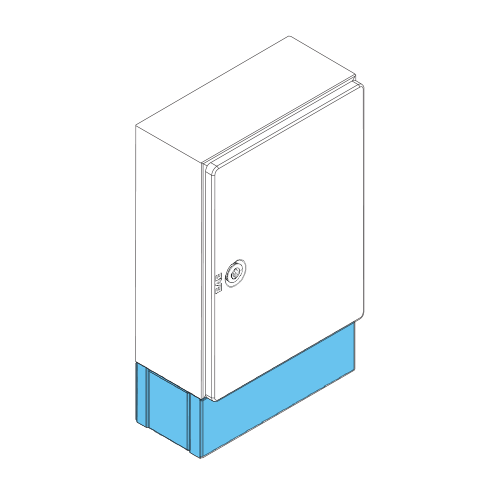

It is designed to connect the enclosure to the ground and to arrange the
cable entry-exit.

Material

Galvanized steel sheet

Scope

  • 2 pieces of Width plinth trim panels
  • 2 pieces of Depth plinth trim panels
  • 4 pieces of M8x20 hex screw
  • M6x20 allen bolt

    Surface

    • Ral 9005 (Black Colour)


    Applicable Series

    HM
    Plinth Set

    Enclosure Rated Width

    Enclosure Rated Depth

    Order Code

    500

    300

    HM BZ 50 30

    600

    300

    HM BZ 60 30

    800

    400

    HM BZ 80 40
