Low-Voltage Enclosure Solutions

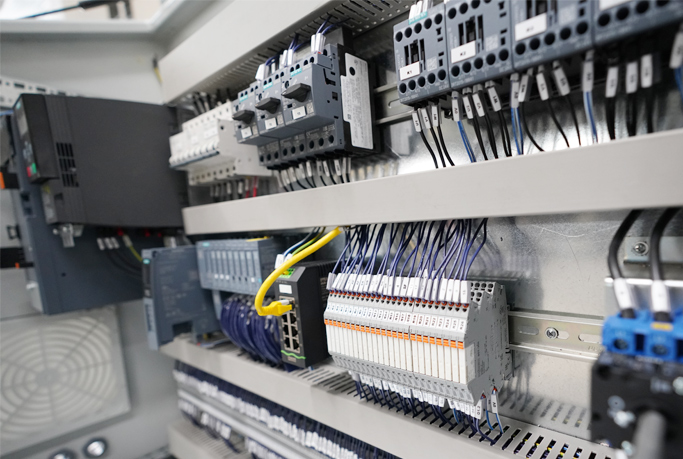

The need and development of control and automation systems are rapidly increasing to enable faster, more reliable, and consistent production processes, reduce workplace accidents and labor expenses by minimizing human intervention, optimize energy consumption, execute more complex operations, and utilize resources more efficiently.

As a result of technological developments, the components comprising these systems, such as PLCs, variable frequency drives (VFDs), motor starters, and HMIs, are becoming more functional and compact. For this reason, the number of these devices within electrical enclosures used for their housing is increasing per unit area.

Kontrol ve Kumanda Çözümleri

The rising quantities of these components generate a demand for greater diversity in general and mounting accessories for the associated enclosures used with the relevant systems. These panels must also offer easier and more flexible installation, incorporate safe power distribution components, and ensure accurate calculation and management of heat generated by power losses from the internal components, including the provision of standard heat dissipation accessories.

The symmetrical design, flexible mounting structure, and extensive range of standard mounting accessories in the range of E-Kabin provide simple, rapid, efficient, and adaptable project management in control and automation applications.

Full Height Mounting Plates – Accessories and Applications
  • EG MK Full Height Mounting Plates
  • EG MKT Full Height Mounting Plates Depth Adjustment Support Rail
  • EG MKA Full Height Mounting Plate Infill Rail
Application Examples:
  • Full Height Mounting Plates  ≥ Changeable Depth Application For 1000 mm Width
  • Short Height Application
  • Short Height Application
  • Short Height Application
Boy Montaj Plakaları - Aksesuarları ve Uygulamaları
Havalandırma Ürünleri
Ventilation Accessories

E-Kabin offers various accessories for natural ventilation applications.

  • EG FM Roof Top Fan (Radial)
  • EG HM Ventilation Module
  • EG FAN Fan-Filter Unit
  • EG FIL Filter Unit
  • HS FM Ventilation Set Under Canopy
  • HF FM Ventilation Set Under Canopy

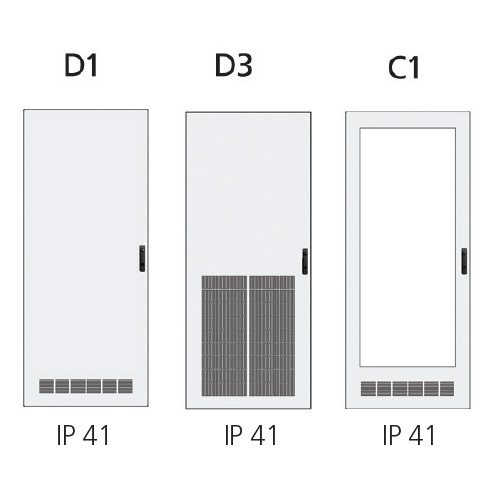

Doors with ventilation louvers

E-Kabin offers ventilated front doors with natural airflow, combined with ventilation accessories, as standard in its range of modular.

Floor-standing enclosures, providing a wide variety of options.

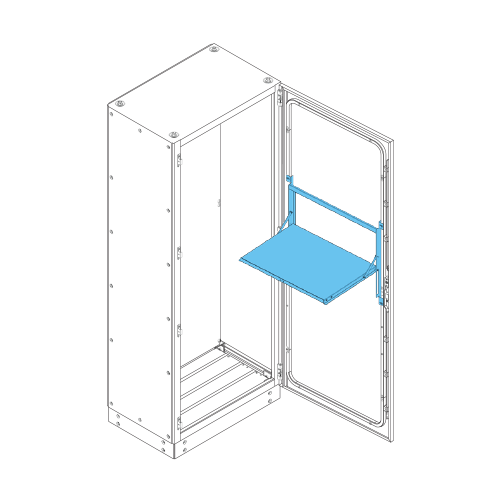

EG DB Laptop Table

In control and automation applications, its portable structure provides a solution without taking up space for the need to have space for laptops during maintenance and service.

Explore
Tip Testli Pano Sistemleri

Forming Accessories

Forming accessories is a system that ensures the separation between the main busbar and the functional unit section in accordance with IPXXB standard and hazardous sections preventing ingress of solid objects in accordance with IP2XB (IEC 61439-2:2020).

While implementing the separation;

  • Short-circuit withstand capability up to 50 kA,
  • Compliance with IPXXB standards against contact with hazardous parts and IP2XB standards against ingress of solid foreign objects (IEC 61439-2:2020)
  • Modular and compact design
  • Full compliance with the E-Kabin standard floor-standing enclosures’ framework
  • Easy and specific selection in product coding for application preferences (Top / Bottom surface, empty or full)
  • Aluminum or sheet metal selection capability for application-specific surfaces
  • Application accessories for easy power feed in the bottom and top closed main busbar form option
  • Wide range of accessories
  • With its modular structure, it offers usable space in the front or rear of the PanelBusbar system along enclosure depth
  • 3P-4P application options
Explore
Tip Testli Pano Sistemleri

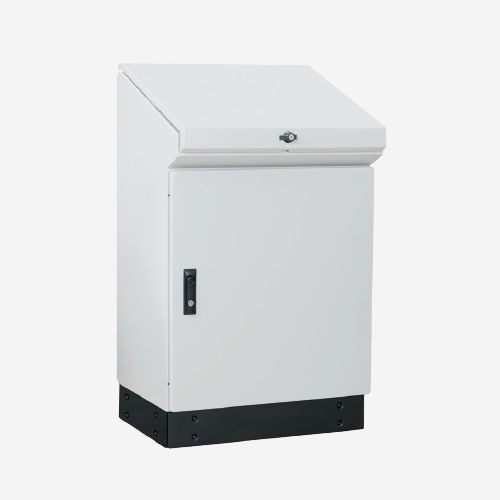

E-Kabin K Series Monoblock Console

E-Kabin K Series monoblock consoles in process, machine and general control and automation applications.

  • Hinged rear door for easy installation
  •  Extended internal usage area with the help of mounting rails’ locations on both sides
  • Availability of using double mounting plate
  • Adjustability of mounting plates through depth
  • Suitable to use brush as accessory, movable partial plates for high IP rating bottom cover plate set
Explore
